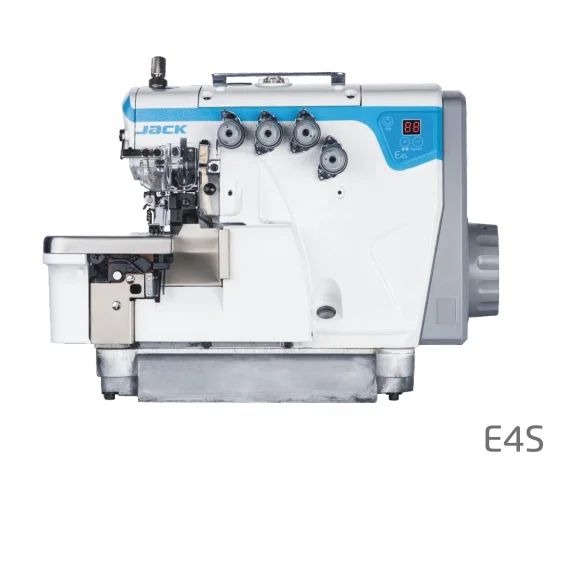

E4S Over Lock Machine
The Jack E4S Direct Drive Overlock Machine is a high-performance sewing machine built to deliver superior edge finishing for a variety of fabrics. Its powerful motor and advanced design make it ideal for overlocking and seaming in garment production, ensuring smooth, professional results in less time.
Product Name E4S Type Overlock Machine Needles 1,2 Needle System Applications Suitable for sewing denim, shirts, raincoats, and various other fabrics

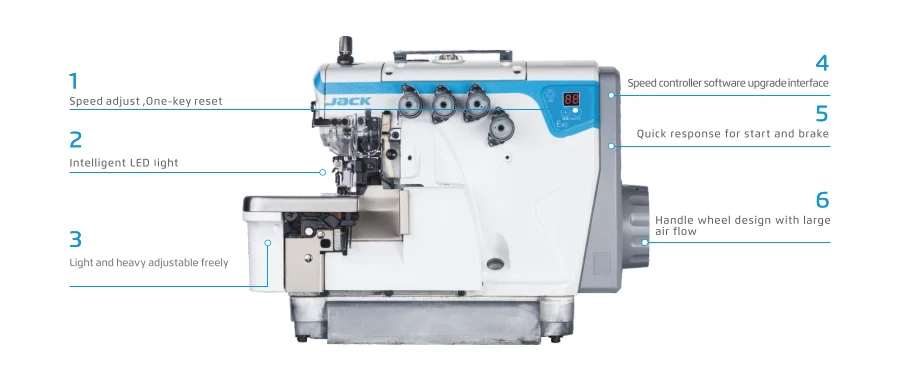

Features
| Feature | Description |

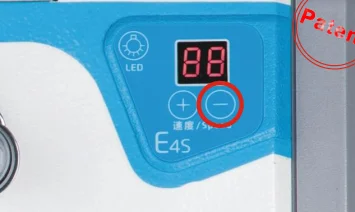

| Stitch Adjustment | Easy push-button to change the stitch length for different sewing needs. |
| Versatile Applications | Can sew various products like denim, shirts, and raincoats. |
| Column Stand | An optional stand that makes it more convenient to use during the sewing process. |
| Efficient Feeding | VT Chain cutter helps to trim more efficient. |

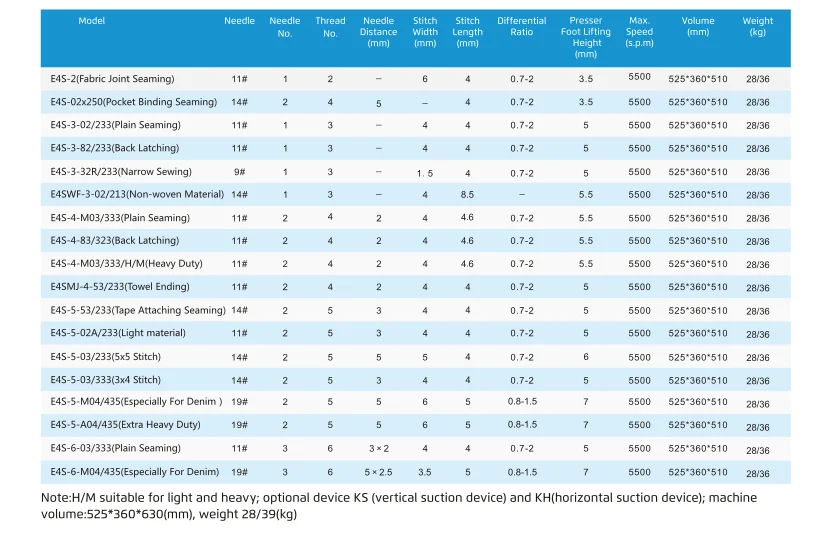

Specification
- Model: E4S
- Needle Size: 9 – 14
- Needle Type: DC x 27
- Number of Stitches: 1,2 types
- Stitch Length: 0.8-4.2
- Number of Threads: 3,4,5,6 threads available.
- Presser Foot Lifting Height: 5mm

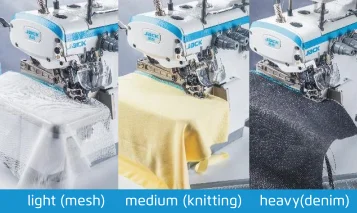

- Lightweight Materials: Can sew light materials
- Medium Materials: Can sew medium-weight materials
- Heavy-Duty Capability: Can sew heavy-duty materials
- Heavier Duty Capability: Not suitable for weighty materials
- Maximum Speed: Can sew up to 5500 stitches per minute
- Dimensions (Size): 525 mm x 360 mm x 510 mm
- Weight: 28 kg (NW / 36 kg (GW)
